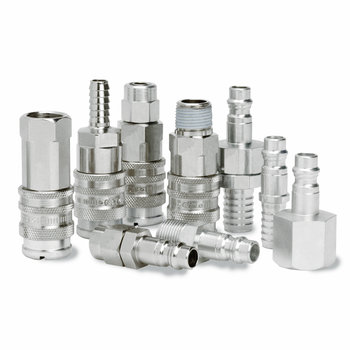

Coupling and Nipples Series 342
Series 342 35 bar (508 PSI) – 1950l/min (69CFM)
A hardened steel locking sleeve and nipple make Series 342 well-suited for breathing air applications in demanding industrial environments. Its special valve design provides an extremely high rate of airflow. Like most CEJN breathing air couplings, Serie 342 offers one-hand-operated connection, an integrated safety feature that guards against unintentional disconnection, a grip-friendly locking sleeve, and a broad connection range
Compatibility:
Couplings: compatible with series 341 and 346 nipples
Nipples: compatible with series 341, 344, 345 and 346 couplings

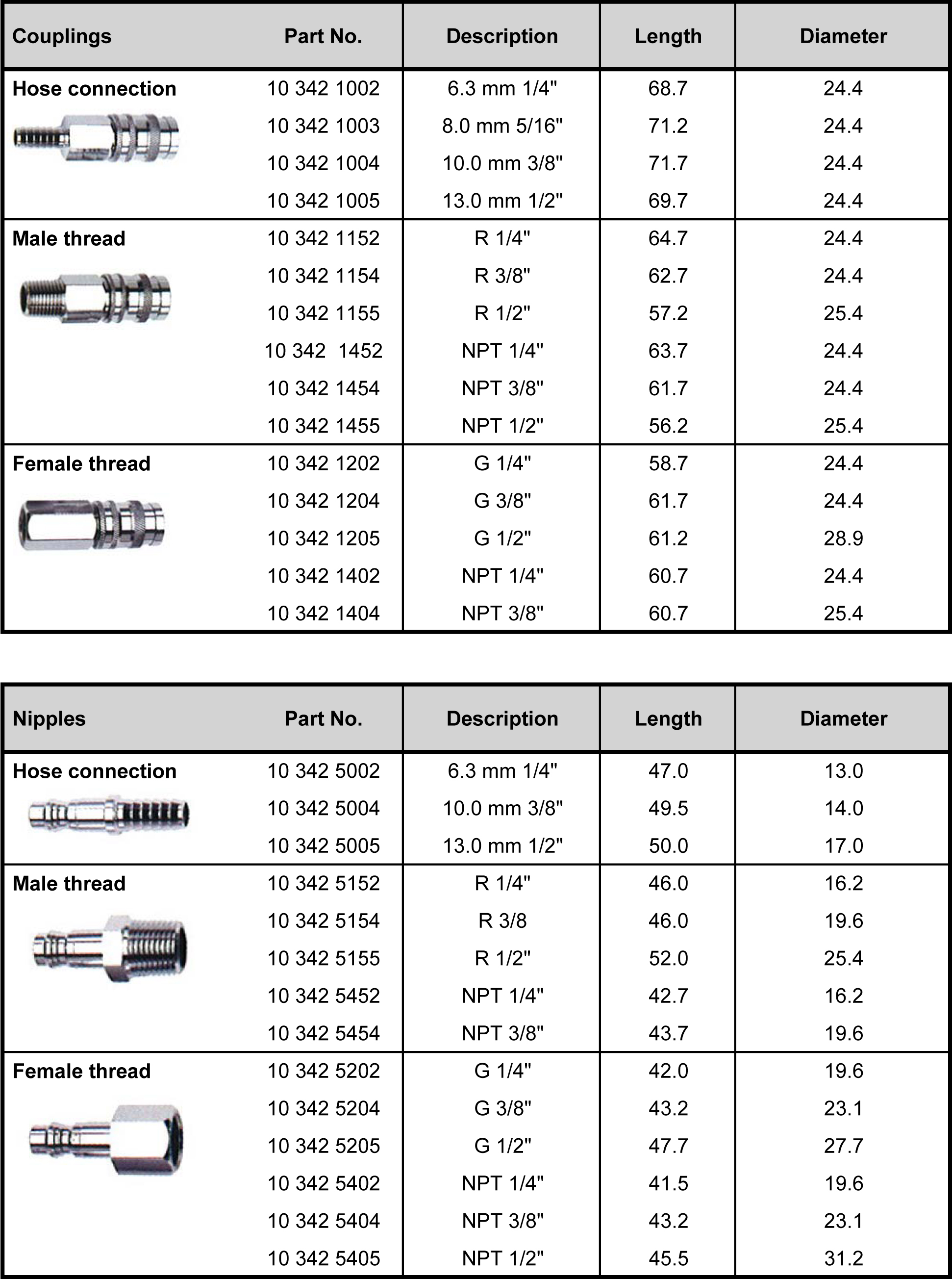

Technical data:
Material: Zinc-plated steel, sleeve and nipple of hardened steel
Seal material: NBR
Airflow at inlet pressure of 6 bar (87 PSI) and pressure drop 0.5 bar (7 PSI): 1950l/min (69 CFM)
Max. working pressure: 35 bar (508 PSI)
Min. burst pressure: 140 bar (2030 PSI)
Temperature range: -30°C to +100°C (-22°F to + 212°F)
Nominal flow diameter: 7.4mm (9/32")
